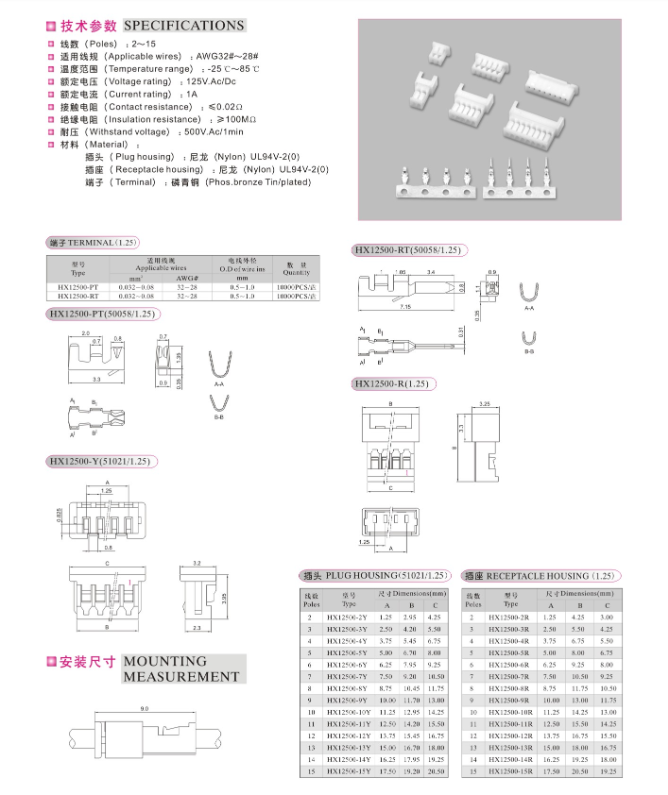

1.25mm pitch wire to wire connectors 51021/1.12
item No : 1.25mm pitch wire to wire connectors 51021/1.12
• 设备 (Poles): 2~15
• 适用线规 (Applicable wires): AWG#32~#28
• 温度范围 (Temperature range): -25°C~85°C
• 额定电压 (Voltage rating): 125V AC/DC
• 额定电流 (Current rating): 1A
• 接触电阻 (Contact resistance): ≤0.020Ω
• 绝缘电阻 (Insulation resistance): ≥100MΩ
• 耐电压 (Withstand voltage): 500V AC/min
• 材料 (Material):
• 插头壳体 (Plug housing): 尼龙 (Nylon) UL94V-2(0)
• 插座壳体 (Receptacle housing): 尼龙 (Nylon) UL94V-2(0)
• 端子 (Terminal): 磷铜 (Phosphor bronze/Tin-plated)
