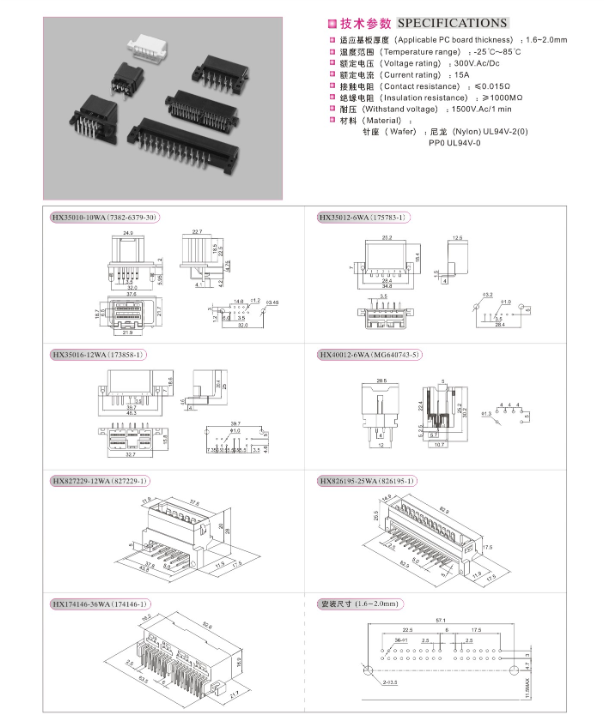

wire to wire connectors Connector for Automobile Series
item No : wire to wire connectors Connector for Automobile Series
• 适用板厚 (Applicable PC board thickness):1.6~2.0mm
• 温度范围 (Temperature range):-25℃~85℃
• 额定电压 (Voltage rating):300V AC/DC
• 额定电流 (Current rating):15A
• 接触电阻 (Contact resistance):≤ 0.015Ω
• 绝缘电阻 (Insulation resistance):≥ 1000MΩ
• 耐电压 (Withstand voltage):1500V AC/1 min
• 材料 (Material):
• 针座 (Wafer):尼龙 (Nylon) UL94V-2(0)
• 插座 (Socket):PP0 UL94V-0
