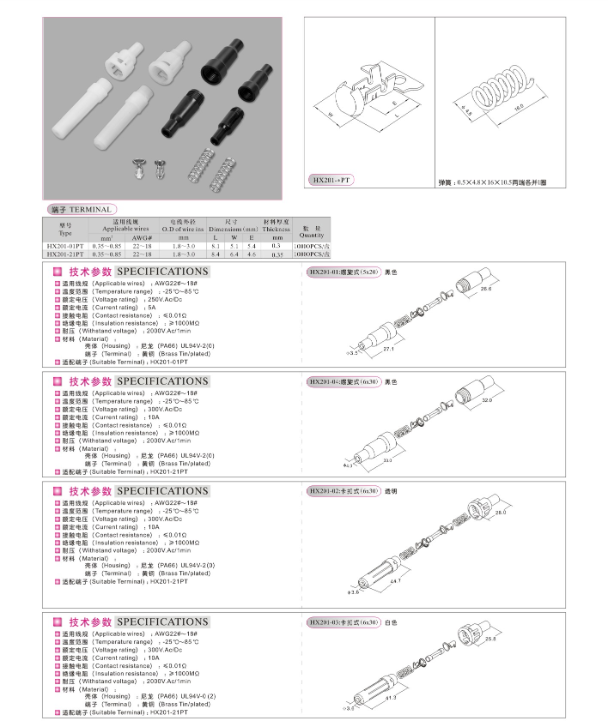

item No : wire to wire connectors Fuse holder Series Commector
• 适用线材 (Applicable wires): AWG22#~18#
• 温度范围 (Temperature range): -25℃~85℃
• 额定电压 (Voltage rating): 300V AC/DC
• 额定电流 (Current rating): 15A max
• 接触电阻 (Contact resistance): ≤ 0.010Ω
• 绝缘电阻 (Insulation resistance): ≥ 1000MΩ
• 耐压 (Withstand voltage): 1500V AC/min
• 材料 (Material):
• 壳体 (Housing): PA66 UL94V-2(0)
• 端子 (Terminal): 黄铜镀锡 (Brass Tin-plated)
