wire to wire connectors Microwave oven Series Connector
item No : wire to wire connectors Microwave oven Series Connector

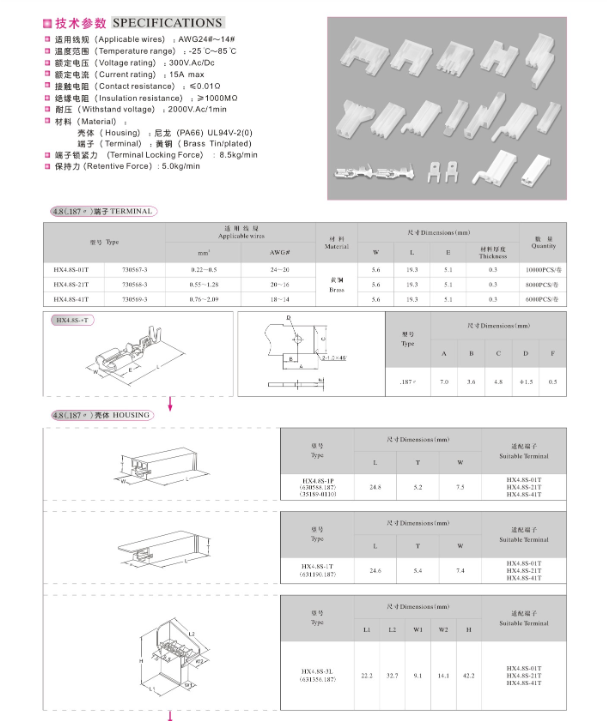

• 适用线材 (Applicable wires): AWG24#~14#
• 温度范围 (Temperature range): -25°C~85°C
• 额定电压 (Voltage rating): 300V AC/DC
• 额定电流 (Current rating): 15A max
• 接触电阻 (Contact resistance): ≤0.010Ω
• 绝缘电阻 (Insulation resistance): ≥1000MΩ
• 耐压 (Withstand voltage): 2000V AC/min
• 材料 (Material):
• 壳体 (Housing): 尼龙 (PA66) UL94V-2(0)
• 端子 (Terminal): 黄铜镀锡 (Brass Tin-plated)
• 啮合力 (Terminal Locking Force): 8.5kgf/min
• 保持力 (Retentive Force): 5.0kgf/min
