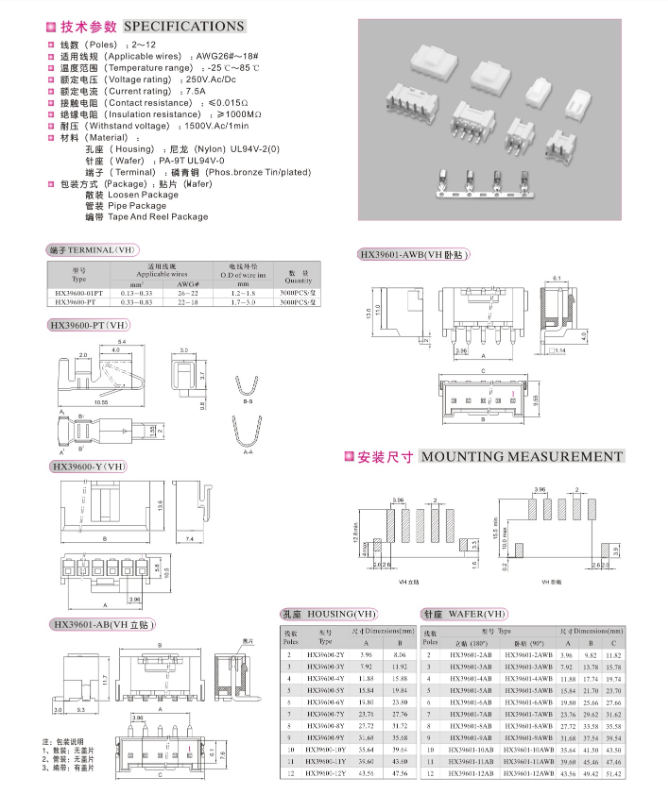

item No : 3.96mm pitch wire to board connectors VH
•
设备 (Poles): 2~12
•
适用线规 (Applicable wires): AWG#26~#18
•
温度范围 (Temperature range): -25°C~85°C
•
额定电压 (Voltage rating): 250V AC/DC
•
额定电流 (Current rating): 7.5A
•
接触电阻 (Contact resistance): ≤0.015Ω
•
绝缘电阻 (Insulation resistance): ≥1000MΩ
•
耐电压 (Withstand voltage): 1500V AC/min
•
材料 (Material):
•
壳体 (Housing): 尼龙 (Nylon) UL94V-2(0)
•
端子 (Terminal): 磷铜 (Phosphor bronze/Tin-plated)
•
线夹 (Wafer): P.A.9T UL94V-0
•
包装 (Package): 散装 (Loose Package), 管装 (Pipe Package), 编带 (Tape and Reel Package)
