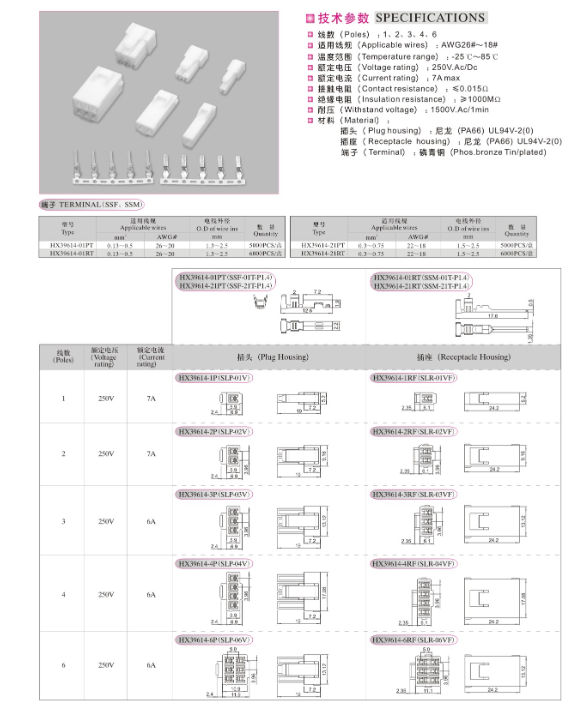

3.96/5.0mm pitch wire to board connectors SLP.SLR
item No : 3.96/5.0mm pitch wire to board connectors SLP.SLR
• 极数 (Poles): 1, 2, 3, 4, 6
• 适用线径 (Applicable wires): AWG26#~18#
• 温度范围 (Temperature range): -25℃~85℃
• 额定电压 (Voltage rating): 250V AC/DC
• 额定电流 (Current rating): 7A max
• 接触电阻 (Contact resistance): ≤0.015Ω
• 绝缘电阻 (Insulation resistance): ≥1000MΩ
• 耐压 (Withstand voltage): 1500V AC/1min
• 材质 (Material):
• 插头 (Plug housing): 尼龙 (PA66) UL94V-2(0)
• 插座 (Receptacle housing): 尼龙 (PA66) UL94V-2(0)
• 端子 (Terminal): 磷青铜 (Phos.bronze Tin/plated)
