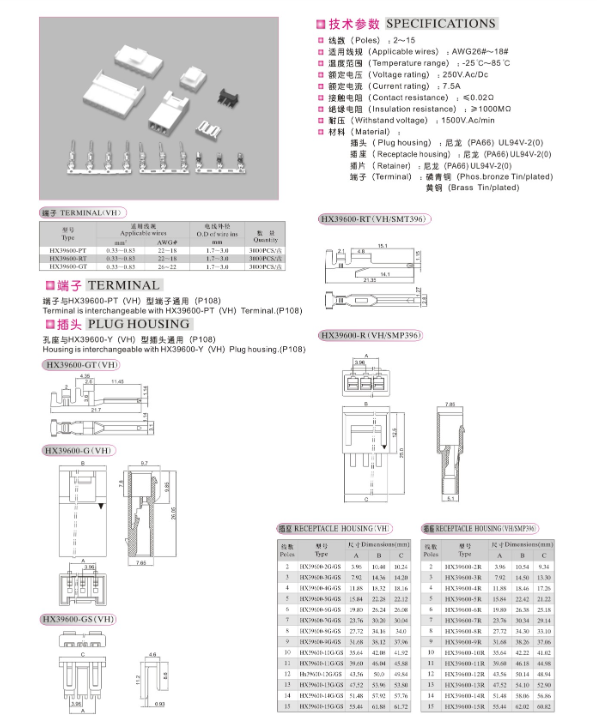

item No : 3.96mm pitch wire to wire connectors VH
•
极数 (Poles): 2~15
•
适用线径 (Applicable wires): AWG26#~18#
•
温度范围 (Temperature range): -25℃~85℃
•
额定电压 (Voltage rating): 250V AC/DC
•
额定电流 (Current rating): 7.5A
•
接触电阻 (Contact resistance): <0.020Ω
•
绝缘电阻 (Insulation resistance): >1000MΩ
•
耐压 (Withstand voltage): 1500V AC/min
•
材质 (Material):
•
插壳 (Plug Housing): 尼龙 (PA66) UL94V-2(0)
•
座壳 (Receptacle housing): 尼龙 (PA66) UL94V-2(0)
•
挡片 (Retainer): 尼龙 (PA66) UL94V-2(0)
•
端子 (Terminal): 磷青铜 (Phos.bronze Tin/plated), 黄铜 (Brass Tin/plated)
