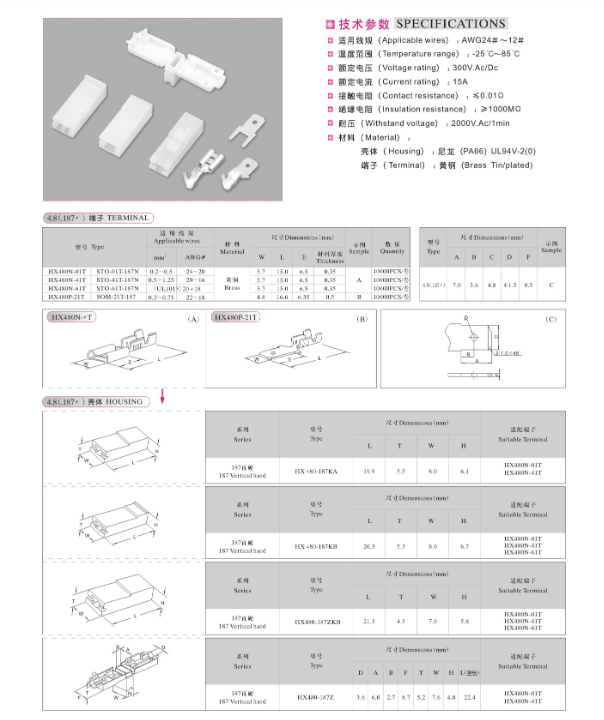

wire to wire connectors 187 Terminal Hard Sleeve Series 4.8In-line
item No : wire to wire connectors 187 Terminal Hard Sleeve Series 4.8In-line
• 适用线规 (Applicable wires): AWG24#~12#
• 温度范围 (Temperature range): -25°C~85°C
• 额定电压 (Voltage rating): 300V AC/DC
• 额定电流 (Current rating): 15A
• 接触电阻 (Contact resistance): ≤0.010Ω
• 绝缘电阻 (Insulation resistance): ≥1000MΩ
• 耐压 (Withstand voltage): 2000V AC/min
• 材料 (Material):
• 壳体 (Housing): 尼龙 (PA66) UL94V-2(0)
• 端子 (Terminal): 黄铜镀锡 (Brass Tin-plated)
